| MOQ: | 800 |
| Price: | Inquiry |
| Standard Packaging: | 1220x2440mm |
| Delivery Period: | 5 |
| Payment Method: | L/C, T/T |

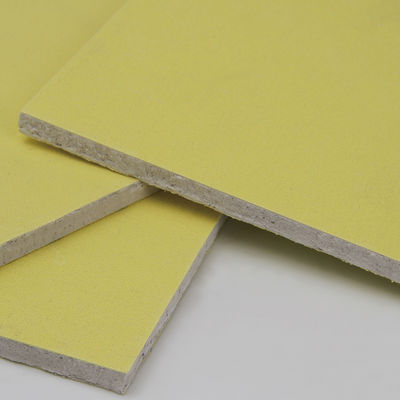

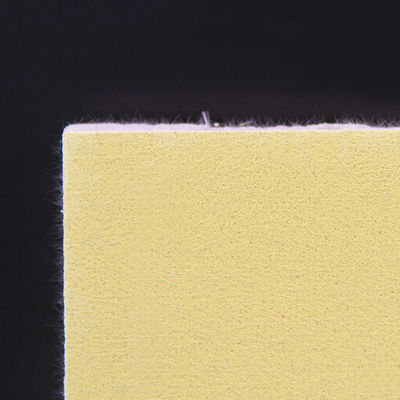

Glass Fiber Reinforced Gypsum (GFRG) Panel is a building panel product, made of calcined gypsum, plaster, reinforced with glass fibers, for Mass-scale building construction, was originally developed and used since 1990 in Australia. The panel, manufactured to a thickness of 124mm under carefully controlled conditions to a length of 12 m and height of 3m, contains cavities that may be unfilled, partially filled or fully filled with reinforced concrete as per structural requirement. Experimental studies and research in Australia, China and India have shown that GFRG panels, suitably filled with plain reinforced concrete possesses substantial strength to act not only as load bearing elements but also as shear wall, capable of resisting lateral loads due to earthquake and wind. GFRG panel can also be used advantageously as in-fills (nonload bearing) in combination with RCC framed columns and beams (conventional framed construction of multi-storey building) without any restriction on number of stories micro-beams and RCC screed (acting on T-beam) can be used as floor/ roof slab.
1. Strength and Durability: GFRG boards are highly durable and have high strength due to the reinforcement provided by glass fibers. This makes them suitable for use in areas where high impact resistance is required.
2. Fire Resistance: GFRG boards are highly fire-resistant and can withstand high temperatures without burning or emitting toxic fumes.
3. Lightweight: GFRG boards are lighter than traditional building materials such as concrete or brick, making them easier to handle and transport.
4. Mold Resistance: GFRG boards are highly resistant to mold and mildew, making them ideal for use in areas with high humidity levels.
5. Versatility: GFRG boards can be easily molded and shaped to create custom designs and architectural features.
6. Sustainability: GFRG boards are made from natural materials and can be recycled at the end of their lifespan, making them an eco-friendly option.
| Matrix | Glass Fiber Reinforced Gypsum (GFRG) Panel |
| Glass Fiber | 5-6% weight, Type E 38% by volume |
| Thickness | 3/16” Nominal |
| Flexural Strength | 10, 660 PSI |
| Modulus of Elasticity | 1.43 X 10^6 PSI |
| Ultimate Tensile Strength | 2, 250 PSI (ASTM D638) |
| Modulus of Elasticity | 3.87 X 10^6 PSI |
| Flammability (ASTM E84-81A): | Flame Spread Index -0 Smoke Developed Value -0 Fuel Contributed -0 |
| Impact Strength (ASTM D256) | 12.9 ft. lb/in |
| Thermal Conductivity (ASTM C518) | “C” of 1.56 BTU/hr. ft^2 0F |
| Barcol Hardness (ASTM D2583) | 64 |
| Rockwell Hardness (ASTM D785) | 98.8 ‘M’ Scale |
| Density | 106.4 lbs/ft. ^3 |
| Thermal Coefficient of Expansion (ASTM D696) | 5.4X10^6 in. /in/ /0f |
| Compressive Strength (ASTM C39/C109) | 7, 080 PSI |
| Water Resistance (ASTM C473) | 12.5% Weight Gain |
| Humidified Deflection (ASTM C473) | 1/8” |
| Toxicity NBS/U.S. Testing | Non-Toxic |
|
|
