MOQ: | 1000 |
Delivery Period: | 4-8 |
Payment Method: | L/C, T/T |
Partition wall systems are commonly used to create interior walls and separations in commercial, industrial, and residential buildings. These systems typically consist of a framing system and a finishing material, such as drywall.
One of the main advantages of light steel keel partition wall systems is that they are quick and easy to install. The lightweight steel framing can be cut and assembled on site, allowing for rapid construction. In addition, the insulation material helps to improve the energy efficiency of the building, reducing heating and cooling costs.
Another benefit of light steel keel partition wall systems is that they are highly versatile. The modular nature of the system means that walls can be easily reconfigured or removed to suit changing needs. This makes them particularly well-suited to commercial spaces, where flexible layouts are often required.
1.Flexibility: Partition walls can be used to create a variety of room configurations and can be easily modified or removed if needed.
2.Cost-effectiveness: Partition walls are often a more cost-effective solution than traditional masonry walls, especially for large or complex projects.
3.Speed of installation: Partition wall systems can be installed quickly, minimizing downtime and allowing for faster completion of the construction project.
4.Improved acoustics: Partition walls can improve the acoustics of a space by reducing noise transmission.
5.Improved fire resistance: Partition walls can provide increased fire resistance compared to traditional masonry walls.
6.Concealment of mechanical systems: Partition walls can be used to conceal mechanical systems, such as ductwork and electrical wiring, improving the overall appearance of the space.
Partition wall systems are available in a variety of materials and designs, including metal, wood, and gypsum-based systems. The specific system chosen will depend on the requirements of the project, including budget, acoustical performance, fire resistance, and desired aesthetic.
Accessories | Specification | Ratio | Package | |||||
Height mm |
Width mm |
Thickness mm |
Length mm |
Weight kg |
Volume m3 |
|||
Vertical keel | 30 | 75 | 0.4 | 3000 | 1.05 | 0.0050625 | 1 square / 2 meters | 20pcs/tie |
30 | 50 | 0.45 | 3000 | 1 square / 2 meters | 20pcs/tie | |||
50 | 50 | 0.45 | 3000 | 11 square / 2 meters | 20pcs/tie | |||
40 | 75 | 0.45 | 3000 | 1 square / 2 meters | 20pcs/tie | |||
50 | 100 | 0.45 | 3000 | 1 square / 2 meters | 20pcs/tie | |||
30 | 75 | 0.5 | 3000 | 1.4 | 0.0050625 | 1 square / 2 meters | 20pcs/tie | |
30 | 75 | 0.6 | 3000 | 1.7 | 0.0050625 | 1 square / 2 meters | 20pcs/tie | |
40 | 75 | 0.6 | 3000 | 1.95 | 0.0050625 | 1 square / 2 meters | 20pcs/tie | |
50 | 75 | 0.6 | 3000 | 2.3 | 0.0050625 | 1 square / 2 meters | 20pcs/tie | |
50 | 100 | 0.6 | 3000 | 2.6 | 0.0075 | 1 square / 2 meters | 20pcs/tie | |
30 | 50 | 0.8 | 3000 | 1 square / 2 meters | 20pcs/tie | |||
50 | 50 | 0.8 | 3000 | 1 square / 2 meters | 20pcs/tie | |||
40 | 75 | 0.8 | 3000 | 1 square / 2 meters | 20pcs/tie | |||
50 | 100 | 0.8 | 3000 | 1 square / 2 meters | 20pcs/tie | |||
50 | 150 | 0.8 | 3000 | 4.5 | 0.01125 | 1 square / 2 meters | 20pcs/tie | |
Heaven and earth keel | 25 | 75 | 0.4 | 3000 | 0.9 | 0.0045 | 1 square / 1 meter | 20pcs/tie |
30 | 50 | 0.45 | 3000 | 1 square / 1 meter | 20pcs/tie | |||
40 | 75 | 0.45 | 3000 | 1 square / 1 meter | 20pcs/tie | |||
40 | 100 | 0.45 | 3000 | 1 square / 1 meter | 20pcs/tie | |||
40 | 75 | 0.5 | 3000 | 1.5 | 0.0045 | 1 square / 1 meter | 20pcs/tie | |
40 | 100 | 0.6 | 3000 | 2.1 | 0.006 | 1 square / 1 meter | 20pcs/tie | |
30 | 50 | 0.8 | 3000 | 1 square / 1 meter | 20pcs/tie | |||
40 | 75 | 0.8 | 3000 | 1 square / 1 meter | 20pcs/tie | |||
40 | 100 | 0.8 | 3000 | 1 square / 1 meter | 20pcs/tie | |||
40 | 150 | 0.8 | 3000 | 4 | 0.009 | 1 square / 1 meter | 20pcs/tie | |
Horizontal keel | 12 | 38 | 1.0 | 3000 | 1.25 | 0.000684 | 1 square / 1 meter | 20pcs/tie |
12 | 38 | 0.6 | 3000 | 0.7 | 0.000684 | 1 square / 1 meter | 20pcs/tie | |
Pull-out screw | 8*70 | 1 square / 3 sets | ||||||
Support card | 1 square / 2pcs | |||||||
Self-tapping screws | 3.5*50 | 40 square/box | 20 boxes/box | |||||
3.5*35 | 40 square/box | 20 boxes/box | ||||||
Putty powder | 20 | 10 square/pack | 1pack/20kg | |||||
Gypsum powder | ||||||||
Mesh belt | 46 | 50m | ||||||
46 | 75m | |||||||
Rock wool (sound insulation wool) | 600 | 50 | 1200 | 40k | Square meter | |||
600 | 60 | 1200 | 80k | Square meter | customized | |||
600 | 75 | 1200 | 100k | Square meter |

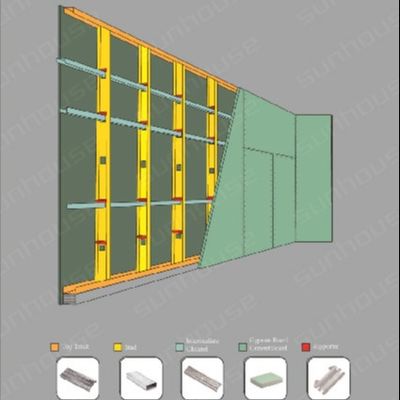

The composition of a framing system for partition walls can vary depending on the specific system used and the requirements of the project. However, here is a general overview of the components that may be included in a partition wall framing system:
Studs: The vertical members of the frame that support the wall and provide a surface for attaching drywall or other finishing materials.
Tracks: Horizontal members that connect the studs and provide a surface for attaching the drywall or other finishing materials.
Bracing: Diagonal members that provide additional stability to the frame.
Hangers: Devices used to secure the frame to the floor or ceiling.
Connectors: Devices used to secure the studs and tracks together.
Shims: Thin pieces of material used to level the frame and provide a level surface for the finishing materials.
Drywall or other finishing materials: Materials used to finish the surface of the partition wall.
The specific components and their quantities will depend on the size, height, and load-bearing requirements of the partition wall, as well as on building code requirements and the goals of the project.
These are just a few examples of the many applications for suspended ceilings. The specific use of a suspended ceiling will depend on the requirements of the specific space and the goals of the project.
