| MOQ: | 800 |
| Price: | Inquiry |
| Standard Packaging: | 1220x2440mm |
| Delivery Period: | 5 |
| Payment Method: | L/C, T/T |
Product Description

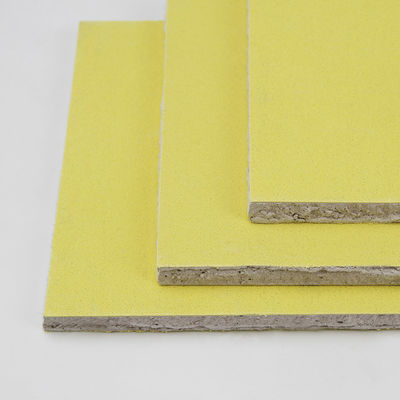

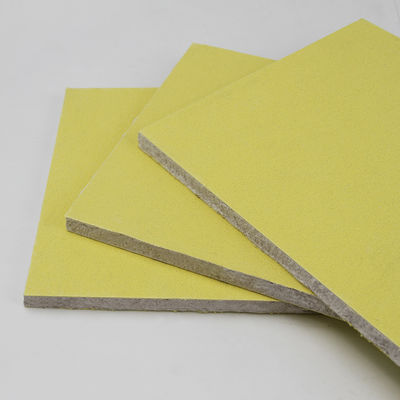

Glass Fiber Reinforced Gypsum (GFRG) board, also known as Fiberglass Reinforced Gypsum (FRG) board, is a type of construction material made by combining gypsum plaster with glass fibers. The glass fibers are embedded in the gypsum plaster to provide increased strength and durability, making it a popular choice for use in buildings, particularly in interior walls, ceilings, and partitions.
GFRG panel possesses high flexural strength, shearing strength, compressive strength, and flexibility. It has a very high level of resistance to fire, water, heat, corrosion, rot, and termites. Concrete filled with vertical reinforcement rods improves it’s vertical and lateral load capacities. GFRG made buildings are resistant to fire, earthquakes, and cyclones.
| Matrix | Glass Fiber Reinforced Gypsum (GFRG) Panel |
| Glass Fiber | 5-6% weight, Type E 38% by volume |
| Thickness | 3/16” Nominal |
| Flexural Strength | 10, 660 PSI |
| Modulus of Elasticity | 1.43 X 10^6 PSI |
| Ultimate Tensile Strength | 2, 250 PSI (ASTM D638) |
| Modulus of Elasticity | 3.87 X 10^6 PSI |
| Flammability (ASTM E84-81A): | Flame Spread Index -0 Smoke Developed Value -0 Fuel Contributed -0 |
| Impact Strength (ASTM D256) | 12.9 ft. lb/in |
| Thermal Conductivity (ASTM C518) | “C” of 1.56 BTU/hr. ft^2 0F |
| Barcol Hardness (ASTM D2583) | 64 |
| Rockwell Hardness (ASTM D785) | 98.8 ‘M’ Scale |
| Density | 106.4 lbs/ft. ^3 |
| Thermal Coefficient of Expansion (ASTM D696) | 5.4X10^6 in. /in/ /0f |
| Compressive Strength (ASTM C39/C109) | 7, 080 PSI |
| Water Resistance (ASTM C473) | 12.5% Weight Gain |
| Humidified Deflection (ASTM C473) | 1/8” |
| Toxicity NBS/U.S. Testing | Non-Toxic |
Glass Fiber Reinforced Gypsum (GFRG or GRG) is the most economical Formglas material and is used in a range of architectural applications such as ceilings, column covers, decorative wall panels, domes, bulkheads, light coves, and more.
Grade and Type- GFRG panel may be supplied in any of the following three grades :
1) Class 1- Water Resistant grade – panels that may be used for external walls, in wet areas and/or as floor and wall formwork for concrete filling; 2) Class 2 – General grade -- panels that may be used structurally or non-structurally in dry areas. These panels are generally unsuitable for use as wall or floor formwork;
3) Class 3 – Partition grade – panels that may only be used as nonstructural internal partition walls in dry areas only.
|
|
