MOQ: | 1000 |
Price: | Inquiry |
Delivery Period: | 5 days |
Payment Method: | L/C, T/T |

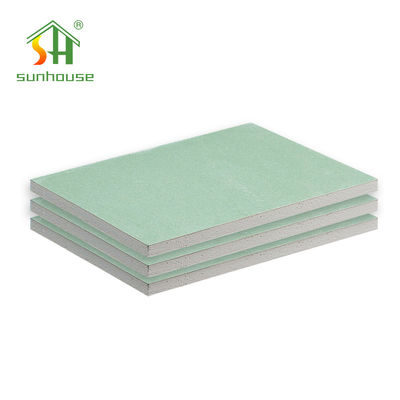

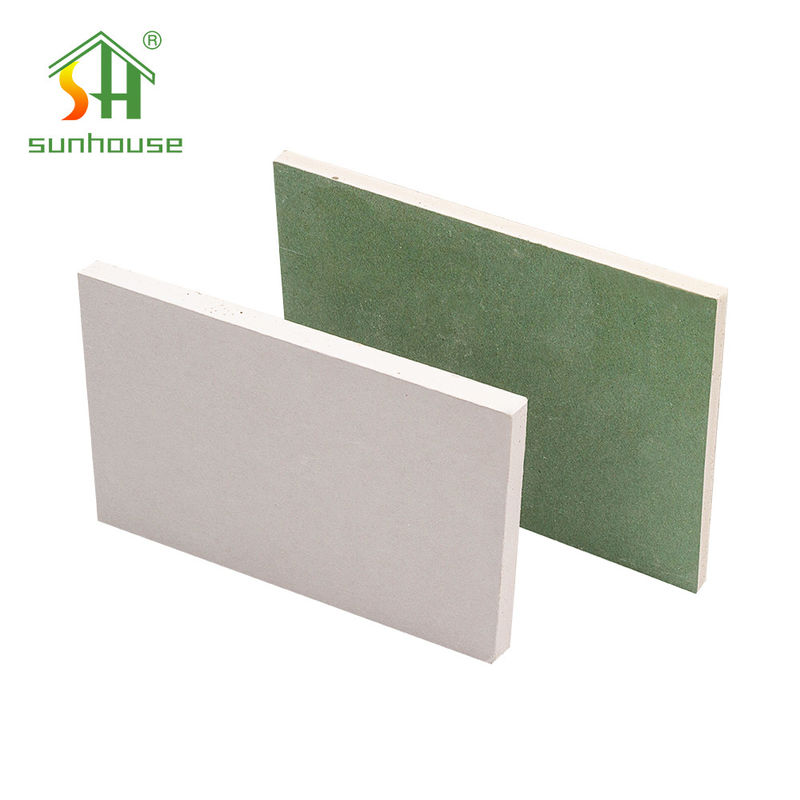

Water-resistant drywall, also known as moisture-proof drywall or green drywall, is a type of drywall specifically designed to withstand wet environments. It is commonly used in areas that need to be protected from moisture, such as bathrooms, kitchens, basements and other damp environments.
It is important to note that waterproof plasterboard is not designed to be completely waterproof, although it does provide an additional layer of protection against moisture. To ensure optimum performance and to maintain the integrity of the surrounding structure, proper installation techniques are required, including the use of appropriate jointing materials, sealants and waterproofing materials.
Item
|
Standard Value | Test Value | ||||
Density
(kg/m²)
|
— | Thickness | Regular | Fire Resistant | Water Resistant | |
≯ 9.5kg/m² | 9.5mm | 7.5 | 7.5 | 7.5 | ||
≯ 12.0kg/m² | 12mm | 9.5 | 9.5 | 11.5 | ||
Flexural Strength(N)
|
Parallel | ≮ 360 | 9.5mm | 560 | ||
≮ 500 | 12mm | 700 | ||||
Cross | ≮ 140 | 9.5mm | 180 | |||
≮ 160 | 12mm | 240 | ||||
Surface Paper Sticking theCore Material | Unexposed | Unexposed | ||||
Stability with Fire (Min) | Fire Resistant | ≮ 20 | / | / | >20 | / |
Water Absorption (%) | Water Resistant | ≮ 10 | 9.5mm | / | / | 6.8 |
12mm
|
/ | / | 4.2 | |||
Radioactivity | Internal | IRa≤1.0 | <1.0 | |||
External | Ir≤1.3 | <1.0 | ||||
Note |
Executive Standard : GB/T 9775-2008
|
![]() |
