9.5mm Lightweight Moisture Resistant Gypsum Board 1220×2440mm Water-Resistant Plasterboard

9.5mm Lightweight Moisture Resistant Gypsum Board 1220×2440mm Water-Resistant Plasterboard

Brand Name:	SUNHOUSE
Model Number:	1220x244m-12mm
MOQ:	800
Payment Terms:	L/C,T/T

Detail Information

Product Description

Detail Information

Place of Origin:

GuangDong

Certification:

Size:

4x8'/1220x2440mm

Thickness:

9.5mm

Material:

Pure Natural Gypsum/plaster

Edges:

Tapered

Paper:

100% Recycled Ivory-colored Face Paper And A Strong Liner Back Paper

Type:

Water Resistant

Use:

Drywall Partition Walls System/Ceiling Ystem

Keyword:

Water Resistant Gypsum Board/Water Resistant Plasterboard

Appliction:

Hotel,Hospital,Library,Building

Brand Name:

SUNHOUSE

Packaging Details:

1220x2440mm-12mm 880pcs=1 container

Product Description

9.5mm Moisture Resistant Gypsum Board 1220×2440mm (4×8 ft) – Lightweight Water-Resistant Plasterboard

The 9.5mm moisture resistant gypsum board is a lightweight interior finishing panel featuring a specially formulated water-repellent gypsum core and moisture-resistant facing paper. With standard dimensions of 1220×2440mm (4×8 ft) and a weight of approximately 7.5 kg/m², it complies with GB/T 9775-2008 and ASTM C1396 standards. This board is engineered for use in environments with moderate humidity, offering improved water absorption performance while reducing handling weight and installation time compared to conventional 12mm panels.

Technical Specifications

Parameter	Standard Requirement	Test Value (9.5mm)
Weight	≤ 9.5 kg/m²	7.5 kg/m²
Flexural Strength (Parallel)	≥ 360 N	560 N
Flexural Strength (Cross)	≥ 140 N	180 N
Water Absorption	≤ 10%	6.8%
Internal Radioactivity (IRa)	≤ 1.0	< 1.0
External Radioactivity (Ir)	≤ 1.3	< 1.0
Compliance Standards	GB/T 9775-2008, ASTM C1396

Key Performance Characteristics

Approximately 25% lighter than standard 12mm gypsum board, reducing labor fatigue and structural load

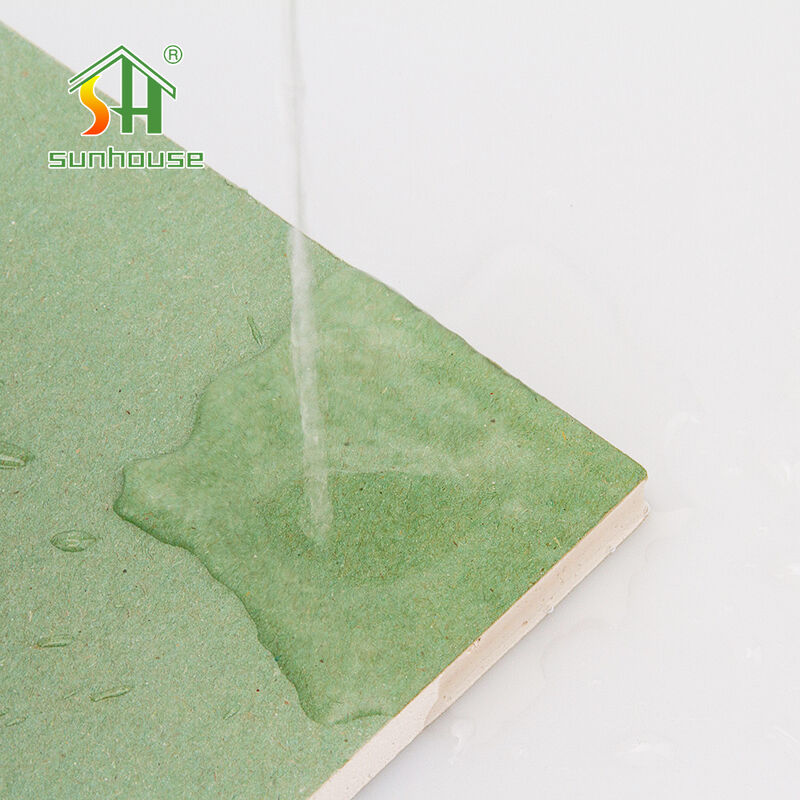

Enhanced moisture resistance with water absorption rate of 6.8%, suitable for areas with occasional humidity exposure
Good workability – scores and snaps cleanly using standard utility knives
Compatible with joint compounds, paints, wallpaper, and textured finishes
Lower transportation and handling costs due to reduced panel weight

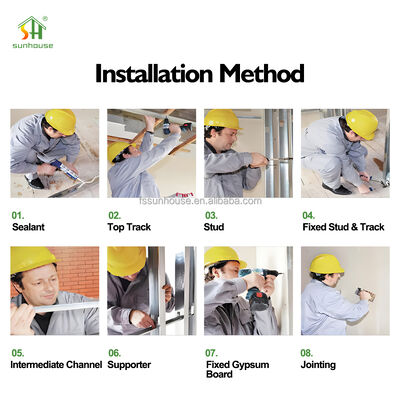

Installation and Handling Guidelines

Important Technical Notes:

• Store panels flat on level supports in a dry warehouse (relative humidity ≤ 85%). Do not stack more than 8–10 panels high.
• Allow panels to acclimatize to site conditions for at least 24 hours before installation.
• Recommended installation temperature range: 5°C to 40°C. Avoid prolonged exposure to humidity above 90% without additional vapor barriers.
• Use a sharp utility knife or fine-tooth saw for cutting. Wear dust mask and eye protection to control gypsum dust.
• Ensure the supporting metal or timber frame is level and securely fixed according to structural requirements.
• Clean the surface only with a soft cloth and neutral detergent. Avoid abrasive cleaners or solvents.
• In high-humidity zones, combine with proper ventilation and consider additional waterproofing measures where necessary.

Typical Applications

Interior non-load-bearing partition walls in residential and commercial buildings
Suspended ceilings in offices, hotels, and retail spaces
Bathroom and kitchen walls with controlled moisture levels
Renovation projects requiring lightweight and easy-to-handle panels
Multi-family housing developments needing cost-effective moisture-resistant solutions

Project References

Selected Supply Records:

• Supplied 42,000 m² of 9.5mm moisture resistant gypsum board for a large residential development in Southeast Asia. The lightweight panels helped reduce installation time by approximately 18% compared to standard boards.

• Delivered 18,500 m² for a hotel renovation project. The improved moisture resistance performed reliably in bathroom and corridor partition walls.

• Provided 25,000 m² for a commercial office fit-out, where the reduced weight significantly lowered labor fatigue during ceiling installation.

Frequently Asked Questions

Is the 9.5mm moisture resistant gypsum board suitable for bathrooms?

A: It offers better moisture resistance than regular gypsum board and is suitable for areas with occasional humidity. For direct water splash zones, additional waterproofing membranes are recommended.

How does the weight compare to standard 12mm gypsum board?

A: The 9.5mm version weighs approximately 7.5 kg/m², which is about 25% lighter than typical 12mm boards, making handling and installation easier and faster.

What are the recommended storage conditions?

A: Store panels flat on level dunnage in a dry environment with relative humidity below 85%. Avoid direct sunlight or rain exposure.

Do you support custom sizes or OEM orders?

A: Yes. We can produce according to specific project requirements, including custom lengths and surface treatments, subject to minimum order quantities.

Are samples available?

A: Standard samples can be provided for evaluation. The buyer covers the courier shipping cost.
