ASTM E119 Wholesale Price Drywall Fire Resistant Gypsum Board for Fire-resistant Building Plasterboard Wall Panels

Brand Name:	SUNHOUSE
MOQ:	500 pcs
Supply Ability:	3000000 Meter/Meters per Month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong

Warranty:

1 Year

After-sale Service:

Online Technical Support, Onsite Inspection, Free Spare Parts

Application:

Indoor, Hotel, Villa, Apartment, Office Building

Design Style:

Modern

Feature:

Fire Resistant Plasterboard

Material:

Pure Natural Gypsum

Color:

Red

Usage:

Internal Wall Partition

Edge:

Square Or Tapered

Thickness:

12.5mm

Regular Size:

1220mm*2440mm

Packaging Details:

Our timber packed in pallet or in bulk/Loose packing(pallet is covered with package board and PVC tapes)

Supply Ability:

3000000 Meter/Meters per Month

Highlight:

ASTM E119 fire resistant gypsum board

drywall fireproof plasterboard panels

wholesale fire-resistant building wall panels

Product Description

Beyond Compliance: How Technical Precision Saved a Multi-Million Dollar Fire Audit

For high-rise developers and industrial contractors, the most expensive word in the vocabulary is "Redo." When a project fails a fire safety audit due to substandard partition materials, the cost of replacement and delays can exceed the original material budget by 500%. We don't just supply Class A1 gypsum boards; we provide a verified firewall system designed to pass the most rigorous international inspections on the first attempt.

SOLUTIONS IN ACTION

The Dilemma: The Sky-Tower Hotel Crisis
In 2024, a major hotel development in Dubai faced a critical bottleneck. Their previous supplier's boards showed core-shrinking during a localized kiln test, threatening the 120-minute fire certification for the main elevator shafts.

Our Intervention: Within 72 hours, our engineering team analyzed the wall assembly. We recommended our 15mm High-Density Reinforced Plasterboard, featuring a specific 0.8% moisture-equilibrium core. We provided the full ASTM C1396 test data and system-level installation guides.

The Result: The replacement partitions maintained structural integrity for 138 minutes during the re-test—surpassing requirements by 15%. The project resumed without further safety violations.

Why Our Fire Rated Core is Different

Most gypsum boards appear identical on the surface. The difference lies in the Micro-Structural Reinforcement. While standard boards rely on generic fillers, our Class A1 boards utilize:

High-Purity Natural Gypsum: Sourced from premium mines to ensure a stable 21% crystallization water content—the building block of passive fire defense.
Long-Strand Glass Fiber Matrix: A dense internal webbing that holds the core together even after the water is released, preventing "core-fallout" during high-pressure hose tests.
Thermal-Expansion Control: Precision-engineered to expand less than 0.05% at 1000°C, preserving the airtight seal of fire-rated joints.
Automated Weight Control: Every board is measured by ultrasonic sensors during production to ensure a consistent density of ≥800kg/m³, guaranteeing predictable fire resistance.

The Advantage of Factory-Direct Technical Support
Working with us means bypassing the broker. You get direct access to our testing lab data and CAD-ready wall assembly details. We help you calculate the exact bill of materials (BOM) needed for 60, 90, or 120-minute ratings, reducing waste and ensuring every square meter is compliant.

Technical Performance Matrix

Property	Testing Standard & Result
Combustibility Rating	Non-Combustible Class A1 (EN 13501 / BS 476)
Surface Burning	Flame Spread Index: 0 \| Smoke Development: 0 (ASTM E84)
Thickness Accuracy	Laser-Controlled: ±0.3mm (9mm / 12mm / 15mm)
Flexural Strength	Exceeds ASTM C1396 requirements by 25% (Reinforced Core)
Moisture Absorption	Standard Internal Grade: ≤10% (Moisture-Resistant Fireboard available)
Certifications	ISO 9001, CE Mark, SGS Audit, UL-Alignment Data

Application Expertise

High-Rise Separation: Essential for corridor walls and partition systems between residential units.
Hazardous Zoning: Ideal for industrial battery rooms, server rooms, and chemical storage areas.
Civic Infrastructure: Specialized solutions for airport terminals and underground metro stations where smoke control is paramount.
Acoustic Firewalls: Combining safety with a 45dB+ noise reduction for luxury hospitality suites.

Quality Assurance & Global Logistics

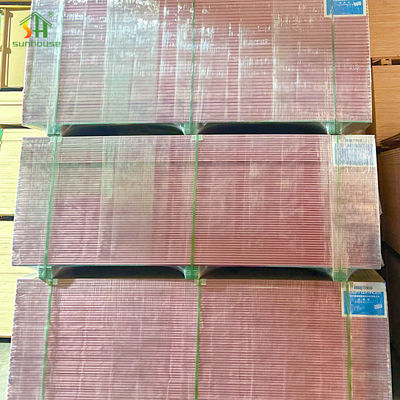

We manage the entire lifecycle of the product. From the mine to the shipping container, each batch undergoes a 5-point quality check: Core Purity, Fiber Distribution, Edge Toughness, Paper Adhesion, and Thermal Stability. Our boards are shipped on heavy-duty, moisture-sealed pallets designed for rough handling at international ports, ensuring they arrive flat, dry, and ready for installation.

Fire Safety: Professional FAQ

Q: Can your boards achieve a 2-hour rating with a single layer?
A: Typically, a 2-hour (120 min) rating is achieved through a double-layer 12.5mm or 15mm system on both sides of a 75mm-100mm metal stud. We provide specific assembly drawings for these requirements.

Q: What is the benefit of the pink/red face paper?
A: It is a critical visual safety cue. It allows site inspectors to verify that fire-rated boards have been used in the correct zones before the final wall finishing begins.

Q: Do you offer custom board lengths to reduce joints?
A: Yes. For large projects, we can produce lengths up to 3600mm. Reducing joints not only speeds up installation but also minimizes potential weak points in the fire barrier.

```
