60mm Width Gypsum Board Ceiling With Light Steel Galvanized Material



Main Runner: The main runner is the primary T-shaped component that runs along the length of the ceiling. It is used to support the cross tees and the ceiling tiles.

Cross Tee: The cross tee is a T-shaped component that connects to the main runner to form a grid pattern. It is used to support the ceiling tiles.

Wall Angle: The wall angle is an L-shaped component that is used to create a perimeter around the ceiling. It is attached to the walls and provides a surface for the ceiling tiles to rest on.

Hanger: The hanger is a metal wire that is used to suspend the main runners from the ceiling or the roof structure. It is attached to the main runner using a clip or a hook.

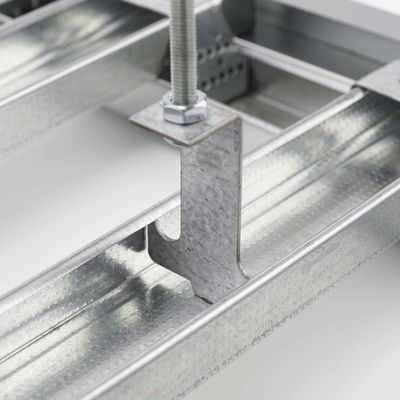

Clip: The clip is a metal component that is used to connect the main runner to the hanger wire. It is inserted into the slot on the main runner and attached to the hanger wire.

Hook: The hook is a metal component that is used to connect the main runner to the hanger wire. It is inserted into the hole on the main runner and attached to the hanger wire.

The German type ceiling system is a type of suspended ceiling system that is commonly used in commercial and residential buildings. It consists of a metal grid that is suspended from the ceiling, and ceiling tiles that are placed within the grid.
To install a German type ceiling system, the following steps should be taken:

1. Measure the area where the ceiling system will be installed to determine the amount of materials needed.

2. Mark the ceiling for the location of the grid system.

3. Install the perimeter molding around the ceiling.

4. Install the hanger wires to suspend the main runners of the grid system from the ceiling.

5. Install the main runners of the grid system.

6. Install the cross tees of the grid system.

7. Place the ceiling tiles into the grid system.

8. Install the lighting fixtures and any other necessary accessories.

With strong flexibility, easy construction and simple maintenance, the ceiling system can meet various interior decoration needs and provide diverse design solutions and decorative effects. It can be used to improve the light, acoustics, heat insulation, thermal insulation, fireproofing and other properties of indoor spaces, while also hiding pipes, wiring, equipment and other cluttered indoor facilities, beautifying the indoor environment and improving the comfort of use.

Product Application

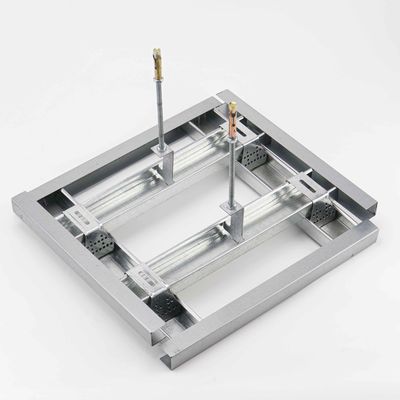

Light steel keel gypsum board ceiling system is a popular choice for suspended ceilings in modern construction. The system consists of a lightweight steel frame that is suspended from the roof or ceiling, and gypsum boards are fixed onto this frame.

• Residential Buildings: Light steel keel gypsum board ceiling systems are commonly used in residential buildings, especially in bedrooms, living rooms, and dining areas. They provide a smooth, flat ceiling surface that can be painted or decorated to match the overall interior design of the home.
• Commercial Buildings: Light steel keel gypsum board ceiling systems are also widely used in commercial buildings, such as offices, shopping malls, hotels, and hospitals. These systems provide a clean and modern look, and are easy to install and maintain.
