| MOQ: | 800 pcs |
| Standard Packaging: | 1220x2440mm |
| Delivery Period: | 5 |
| Payment Method: | L/C, T/T |
The advantages of the light steel keel gypsum board ceiling system are convenient installation, fast construction, beautiful appearance, and good sound insulation effect, which are widely used in various applications. At the same time, the system also requires regular maintenance and inspection to ensure its safety and reliability.

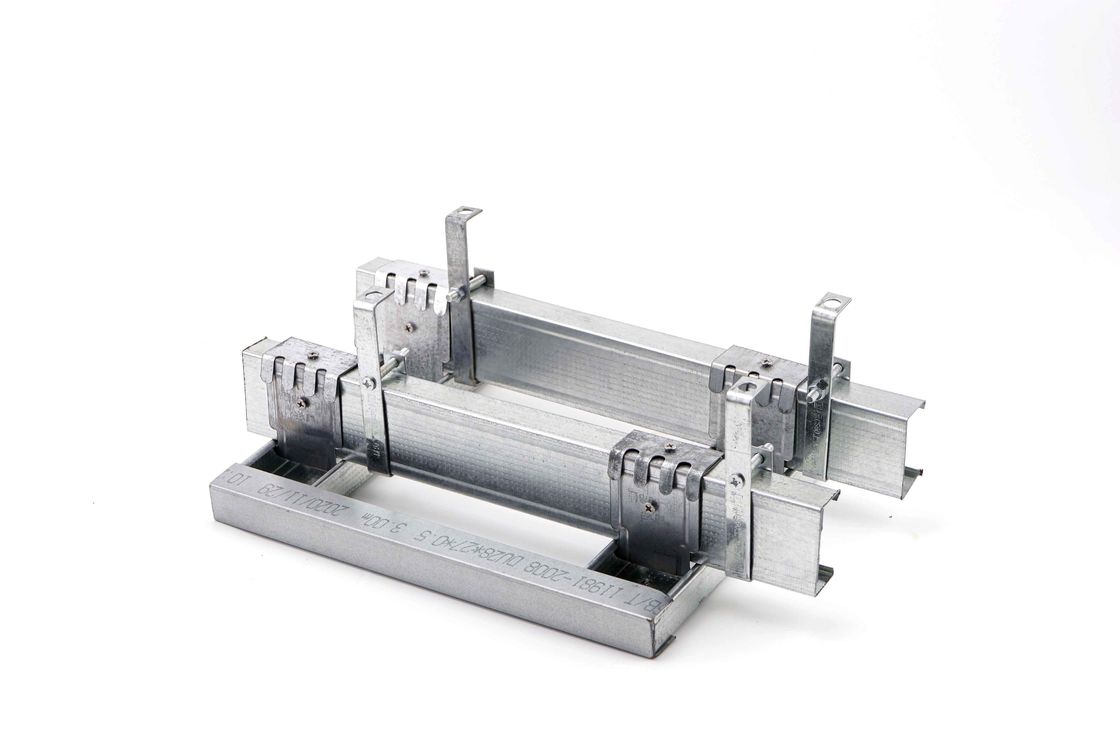

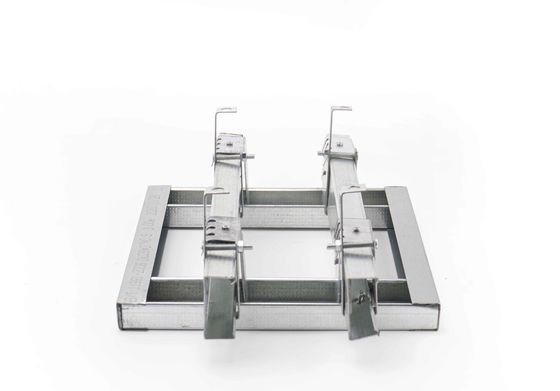

The Light Steel Keel Gypsum Board Ceiling System is a popular type of suspended ceiling system used in both residential and commercial construction. It is composed of a steel framework made from thin, lightweight galvanized steel sections that are formed into channels, studs, and tracks. These steel components are designed to interlock, creating a sturdy framework that supports a layer of gypsum board or plasterboard that forms the visible ceiling surface.
| Accessories | Specification(mm) | Unit | Dosage | |||
| Height (mm) | Width (mm) | Thickness (mm) | Length (mm) | |||
| Main Channel | 27 | 60 | 1.2 | 3000 | M | 1m/Sqm |
| 27 | 60 | 1.1 | 3000 | M | 1m/Sqm | |
| 27 | 60 | 1 | 3000 | M | 1m/Sqm | |
| Vice Channel | 27 | 60 | 0.8 | 3000 | M | 3m/Sqm |
| 27 | 60 | 0.7 | 3000 | M | 3m/Sqm | |
| 27 | 60 | 0.6 | 3000 | M | 3m/Sqm | |
| 27 | 60 | 0.5 | 3000 | M | 3m/Sqm | |
| Wall Angle | 20 | 27 | 0.5 | 3000 | PCS | 0.2pcs/Sqm |
| Sleeve Anchor | φ8 | SET | 1set/Sqm | |||
| Thread Rod | φ6/8/10/12 | 3000 | M | 1m/Sqm | ||
| Nut | φ8 | PCS | 3pcs/Sqm | |||
| Drywalll Screw | 3.5*50 | Box | 1 box/40Sqm | |||
| 3.5*35 | Box | 1 box/40Sqm | ||||
| Hanger | / | PCS | 1 pcs/Sqm | |||
| Conneting Clip | / | PCS | 2 pcs/Sqm | |||
| Putty Powder | 20kgs/bag | BAG | 1bag/10Sqm | |||
| Joint Compound | 25kgs/bucket | Bucket | 0.2bucket/Sqm | |||
| Paper Joint Tape | 46*50000 | Roll | 1Roll/9Sqm | |||
| 46*75000 | Roll | 1Roll/13Sqm | ||||
Main Runner: The main runner is the primary T-shaped component that runs along the length of the ceiling. It is used to support the cross tees and the ceiling tiles.
Cross Tee: The cross tee is a T-shaped component that connects to the main runner to form a grid pattern. It is used to support the ceiling tiles.
Wall Angle: The wall angle is an L-shaped component that is used to create a perimeter around the ceiling. It is attached to the walls and provides a surface for the ceiling tiles to rest on.
Hanger: The hanger is a metal wire that is used to suspend the main runners from the ceiling or the roof structure. It is attached to the main runner using a clip or a hook.
Clip: The clip is a metal component that is used to connect the main runner to the hanger wire. It is inserted into the slot on the main runner and attached to the hanger wire.
Hook: The hook is a metal component that is used to connect the main runner to the hanger wire. It is inserted into the hole on the main runner and attached to the hanger wire.
The German type ceiling system is a type of suspended ceiling system that is commonly used in commercial and residential buildings. It consists of a metal grid that is suspended from the ceiling, and ceiling tiles that are placed within the grid.
To install a German type ceiling system, the following steps should be taken:
Measure the area where the ceiling system will be installed to determine the amount of materials needed.
Mark the ceiling for the location of the grid system.
Install the perimeter molding around the ceiling.
Install the hanger wires to suspend the main runners of the grid system from the ceiling.
Install the main runners of the grid system.
Install the cross tees of the grid system.
Place the ceiling tiles into the grid system.
Install the lighting fixtures and any other necessary accessories.
With strong flexibility, easy construction and simple maintenance, the ceiling system can meet various interior decoration needs and provide diverse design solutions and decorative effects. It can be used to improve the light, acoustics, heat insulation, thermal insulation, fireproofing and other properties of indoor spaces, while also hiding pipes, wiring, equipment and other cluttered indoor facilities, beautifying the indoor environment and improving the comfort of use.
1. Educational Institutions: Light steel keel gypsum board ceiling systems are often used in schools, universities, and other educational institutions. They provide a safe and comfortable learning environment, and are particularly useful for soundproofing and reducing noise levels in classrooms and lecture halls.
2. Industrial Buildings: Light steel keel gypsum board ceiling systems can also be used in industrial buildings, such as factories and warehouses. These systems are durable and can withstand harsh environmental conditions, making them ideal for use in areas with high humidity or temperature.
3. Renovation Projects: Light steel keel gypsum board ceiling systems are a great choice for renovation projects. They are easy to install and can be used to cover up old and damaged ceilings, providing a fresh and modern look to any room.
|
|
