Soundproof Gypsum Board Ceiling With Light Steel Keel Material

Soundproof Gypsum Board Ceiling With Light Steel Keel Material

MOQ: 800 pcs
Standard Packaging: 1220x2440mm
Delivery Period: 5
Payment Method: L/C, T/T
Detail Information
Place of Origin
GuangDong
Brand Name
SUNHOUSE
Material:
Light Steel Keel/Galvanized Material
Type:
Ordinary
Use:
Gypsum Board Ceiling Ystem
Keyword:
Gypsum Board Ceiling
60# Keel Width:
60mm
60# Keel Height:
27mm
60# Keel Thickness:
0.5~1.2
Minimum Order Quantity:
800 pcs
Packaging Details:
1220x2440mm
Delivery Time:
5
Payment Terms:
L/C, T/T
Highlight:

Soundproof Gypsum Board Ceiling

,

Gypsum Board Ceiling Light Steel

Product Description

60# German Style Knauf Gypsum Board Ceiling System Plasterboard Ceiling System


Products Introduction


Light Steel Keel Gypsum Board Ceiling System advantages of the ceiling system include easy installation, fast construction, beautiful appearance and good sound insulation, which are widely used in various applications. At the same time, the system also requires regular maintenance and inspection to ensure its safety and reliability.

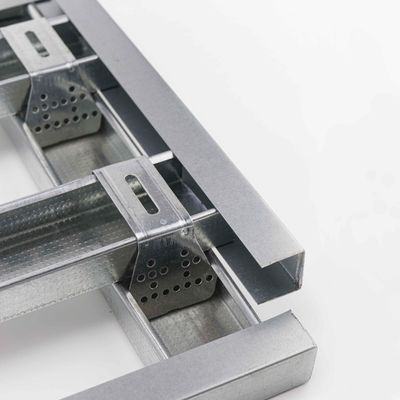

Soundproof Gypsum Board Ceiling With Light Steel Keel Material 0


Product Solution Details


Accessories Specification(mm) Unit Dosage
  Height
(mm)
Width
(mm)
Thickness
(mm)
Length
(mm)
Main Channel 27 60 1.2 3000 M 1m/Sqm
27 60 1.1 3000 M 1m/Sqm
27 60 1 3000 M 1m/Sqm
Vice Channel 27 60 0.8 3000 M 3m/Sqm
27 60 0.7 3000 M 3m/Sqm
27 60 0.6 3000 M 3m/Sqm
27 60 0.5 3000 M 3m/Sqm
Wall Angle 20 27 0.5 3000 PCS 0.2pcs/Sqm
Sleeve Anchor     φ8   SET 1set/Sqm
Thread Rod     φ6/8/10/12 3000 M 1m/Sqm
Nut     φ8   PCS 3pcs/Sqm
Drywalll Screw 3.5*50     Box 1 box/40Sqm
3.5*35     Box 1 box/40Sqm
Hanger / PCS 1 pcs/Sqm
Conneting Clip / PCS 2 pcs/Sqm
Putty Powder 20kgs/bag BAG 1bag/10Sqm
Joint Compound 25kgs/bucket Bucket 0.2bucket/Sqm
Paper Joint Tape 46*50000 Roll 1Roll/9Sqm
46*75000 Roll 1Roll/13Sqm

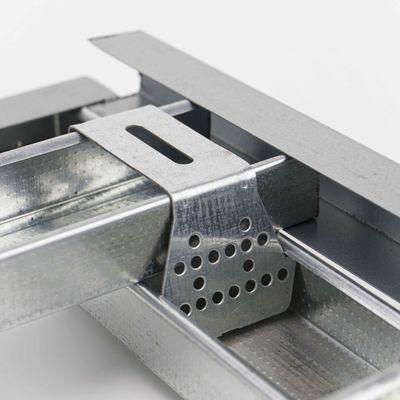

Soundproof Gypsum Board Ceiling With Light Steel Keel Material 1

Main Runner: The main runner is the primary T-shaped component that runs along the length of the ceiling. It is used to support the cross tees and the ceiling tiles.



Cross Tee: The cross tee is a T-shaped component that connects to the main runner to form a grid pattern. It is used to support the ceiling tiles.



Wall Angle: The wall angle is an L-shaped component that is used to create a perimeter around the ceiling. It is attached to the walls and provides a surface for the ceiling tiles to rest on.

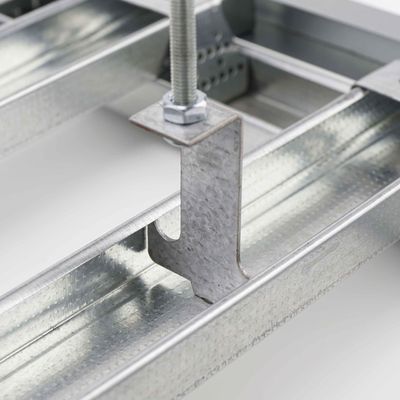

Hanger: The hanger is a metal wire that is used to suspend the main runners from the ceiling or the roof structure. It is attached to the main runner using a clip or a hook.



Clip: The clip is a metal component that is used to connect the main runner to the hanger wire. It is inserted into the slot on the main runner and attached to the hanger wire.



Hook: The hook is a metal component that is used to connect the main runner to the hanger wire. It is inserted into the hole on the main runner and attached to the hanger wire.



The German type ceiling system is a type of suspended ceiling system that is commonly used in commercial and residential buildings. It consists of a metal grid that is suspended from the ceiling, and ceiling tiles that are placed within the grid.

To install a German type ceiling system, the following steps should be taken:

  1. Measure the area where the ceiling system will be installed to determine the amount of materials needed.

  2. Mark the ceiling for the location of the grid system.

  3. Install the perimeter molding around the ceiling.

  4. Install the hanger wires to suspend the main runners of the grid system from the ceiling.

  5. Install the main runners of the grid system.

  6. Install the cross tees of the grid system.

  7. Place the ceiling tiles into the grid system.

  8. Install the lighting fixtures and any other necessary accessories.

With strong flexibility, easy construction and simple maintenance, the ceiling system can meet various interior decoration needs and provide diverse design solutions and decorative effects. It can be used to improve the light, acoustics, heat insulation, thermal insulation, fireproofing and other properties of indoor spaces, while also hiding pipes, wiring, equipment and other cluttered indoor facilities, beautifying the indoor environment and improving the comfort of use.


Product Application

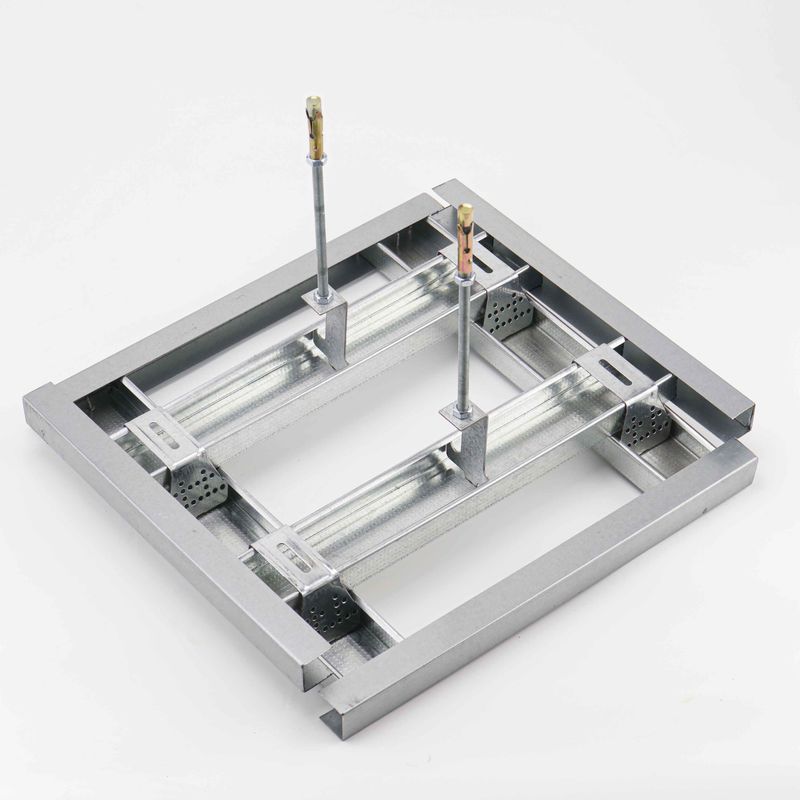

Soundproof Gypsum Board Ceiling With Light Steel Keel Material 2



German Plasterboard Ceiling System is suitable for interior decoration of various buildings, such as residential, commercial offices, hotels, hospitals, schools, airports and other public buildings, as well as industrial buildings such as factories and warehouses. The system can be used for interior decoration of new buildings, as well as for renovation and remodeling of old buildings.
